Cygnus 4+ General Purpose
Multi-Mode Ultrasonic Thickness Gauge

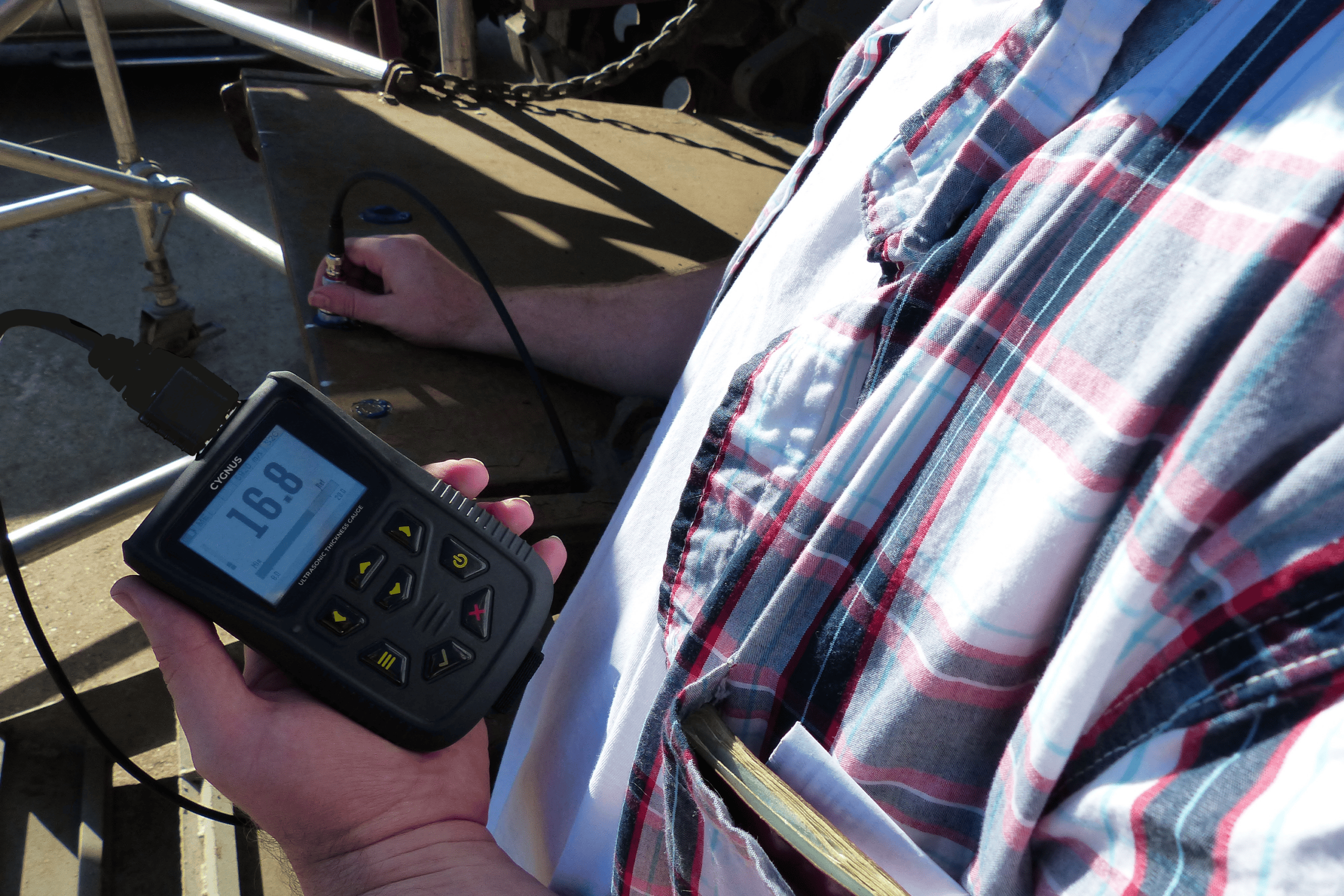

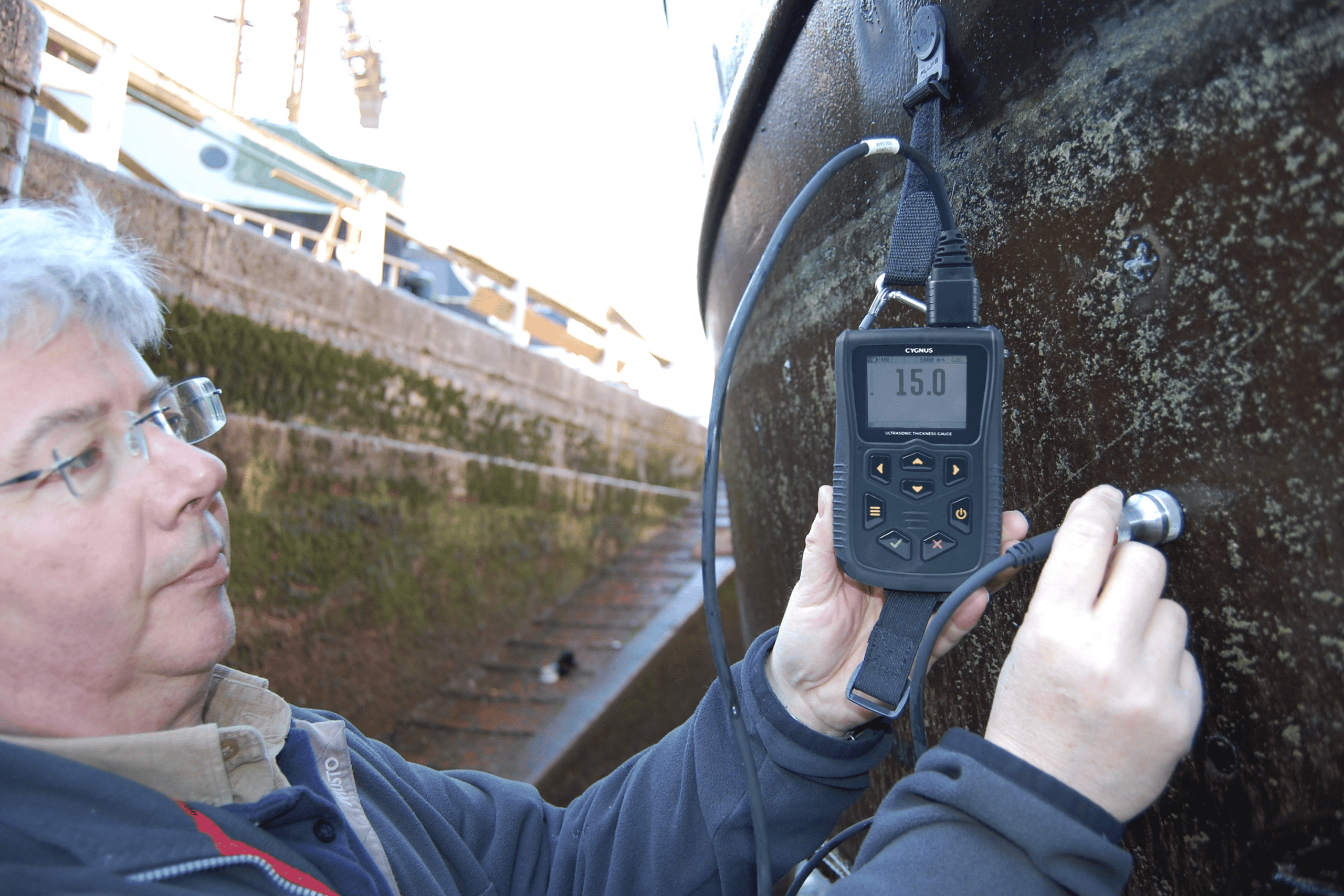

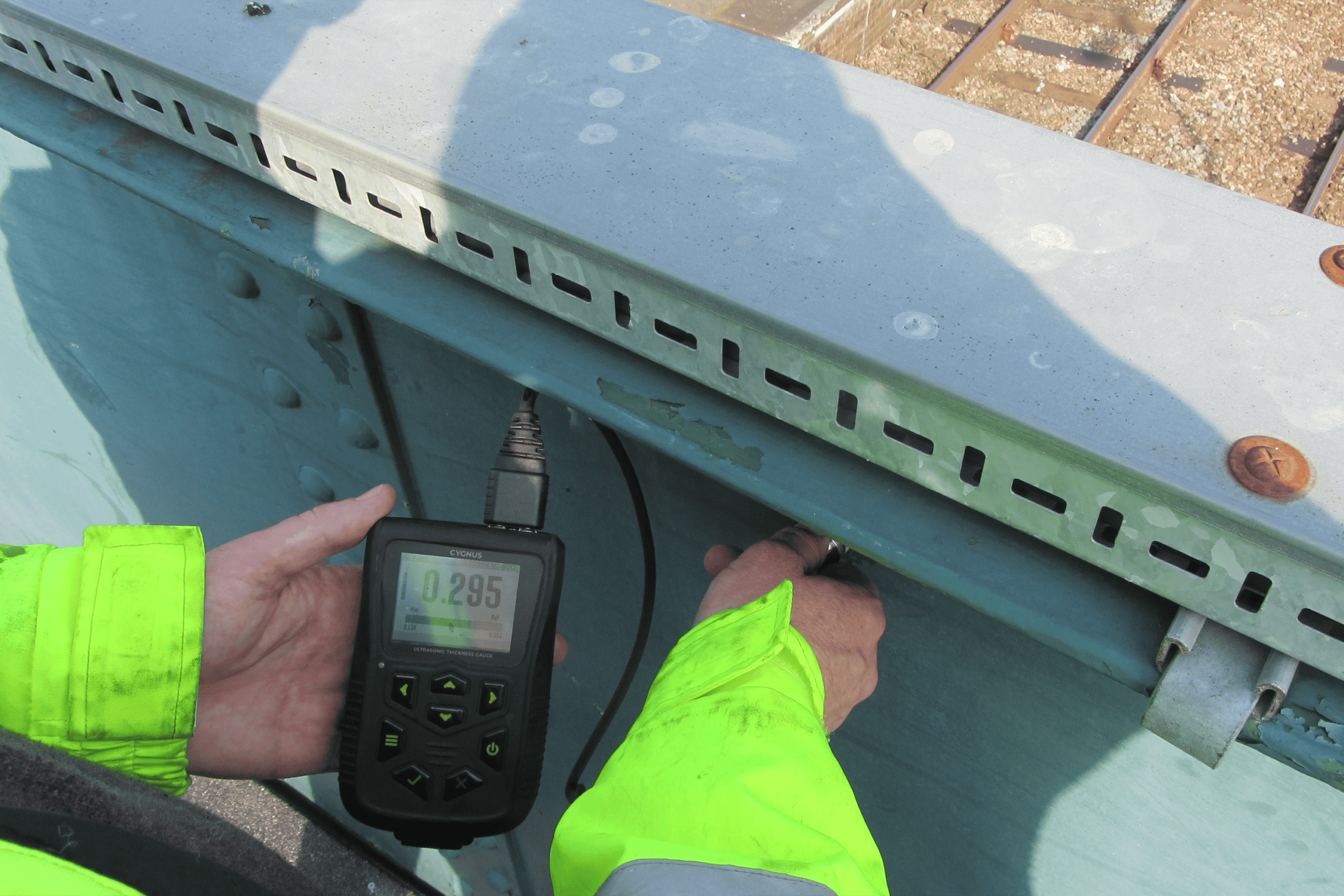

The Cygnus 4PLUS is a small and tough multi-mode ultrasonic thickness gauge which features an A-scan display, simple to use sequential data logging and manual and automatic gain control.
Designed for the harshest of environments, with a simple to use keypad, intuitive menus and a colour LCD display which can be viewed in all lighting conditions.
The twin shot injection moulded enclosure has a soft but durable TPE outer skin which is comfortable to hold and protects against bumps while the hard internal shell offers maximum strength and environmental protection certified to the demanding US MIL STD 810G standard.
The unit still relies on Multiple-Echo to provide simple and accurate measurements, with the added benefit of Echo-Echo and Single-Echo using twin crystal probes for extreme corrosion. Echo-Echo for measurements on painted metals but with heavy back wall corrosion / pitting and Single-Echo for measurements on uncoated surfaces with heavy front face and/or back-wall corrosion and attenuative materials such as cast metals or plastics / composites.
Cygnus Instruments builds all of its equipment in the UK using only genuine and original parts and components – including Lemo® Connectors and Peli® Cases.
FEATURES
- Multiple-Echo for reliable, accurate through coating measurements
- Single-Echo and Echo-Echo measuring modes with twin crystal probes for extreme corrosion and back wall pitting
- A-scan display
- Manual and automatic gain control
- MSI™ (Measurement Stability Indicator) used in Single-Echo and Echo-Echo measurement modes
- Simple linear data logging
- Large bright colour LCD screen with back light
- Deep-coat mode, measure through coatings up to 20 mm thick
- Wrist mountable
- Min/max measurement limit functions with visual and vibrate alert
- Intuitive easy to use menu
- Extremely rugged enclosure – shock and impact to US MIL STD 810G
- Environmental sealing to IP67 – US MIL STD 810G
- Cygnus echo strength bars to assist quick measurements
- Buttons integral with the TPE moulding and designed for minimum 100,000 depressions.
DATA LOGGING KEY FEATURES
- Versatile data logging which allows measurements and A-scans to be saved
- 5,000 measurement points (including A-scan) per record
- Records are saved to a removable SD card
- Selectable auto-log feature
- Records easily transferred via gauge USB port to *CygLink software where they can be exported to a .CSV file or a PDF report.
*For more details, visit the CygLink Software page in PRODUCTS > THICKNESS GAUGING ACCESSORIES section.
MULTIPLE-ECHO IGNORES COATINGS UP TO 20MM THICK

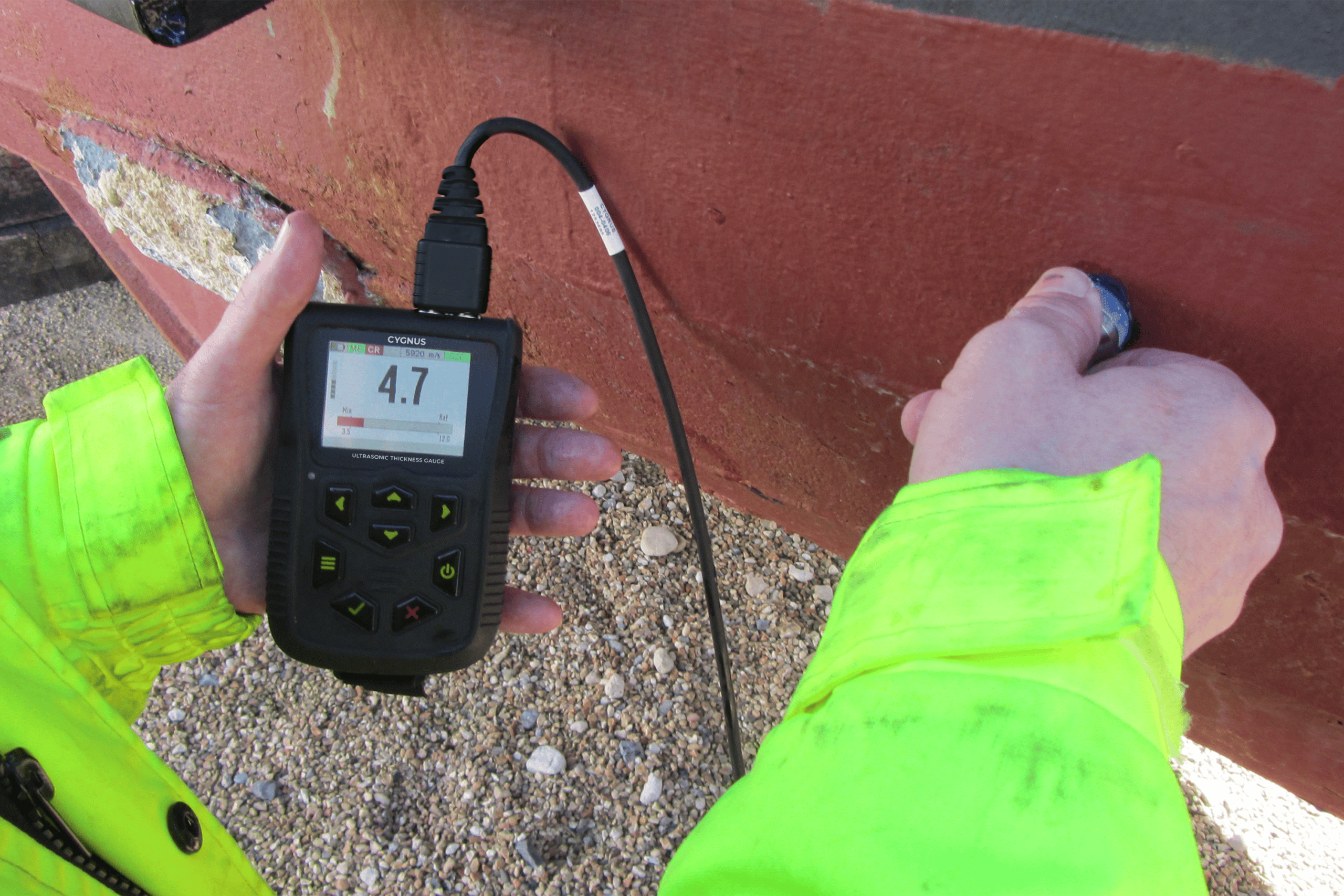

MEASURING HEAVILY CORRODED METALS
ECHO-ECHO MODE IGNORES 1MM THICK PAINT
CYGNUS THICKNESS GAUGE IMPACT TEST
CYGNUS THICKNESS GAUGE WATER RESISTANCE DUNK TEST
CYGNUS THICKNESS GAUGE WATER RESISTANCE HOSE TEST
LARGE BRIGHT LCD DISPLAY
LARGE LCD DISPLAY AND SIMPLE MENU OPERATION
MEASURING UNCOATED SMALL DIAMETER PIPES
MEASURING SMALL DIAMETER PIPES THROUGH COATINGS
A-SCAN ON CORROSION
| Materials | Sound velocities between 1000 – 9000 m/s – covers virtually all common engineering materials |
| Accuracy | ±0.1 mm or 0.1% of thickness measurement, whichever is greatest, when calibrated in accordance with Cygnus Instruments calibration procedure |
| Resolution | Multiple-Echo mode – 0.1 mm or 0.05 mm Single-Echo and Echo-Echo modes – 0.01 mm |
| Measurement Range in Steel | Single crystal probes in Multiple-Echo:
Twin crystal probes in Single-Echo:
Twin crystal probes in Echo-Echo:
|
| Connector | Twin Lemo 00 |
| Power | 3 x AA batteries |
| Battery Life | 10 hours minimum |
| Electronics | Dual channel pulser |
| Display | 2.4″ quarter VGA LCD |
| Size | 132 x 82 x 34 mm |
| Weight | 300 grams (inc. batteries) |
| Operating Temp. | -10°C to 50°C |
| Data Logging | Capacity up to 5000 points including A-scans |
| Computer Software | CygLink allows remote logging and viewing of A-scan graphs. Survey and report generation to PDF file. Data can be exported as a .csv file. Graphic analysis of data and statistical calculations. Designed for Windows 7 and Windows 8. |
| Environmental Rating | IP67 (dust tight and immersion – 1 metre for 30 mins) Explosive Atmosphere: Safe operation as defined by Class I, Division 2, Group D, as found in the National Fire Protection Association Code (NFPA 70), Article 500, and tested using MIL STD 810G Method 511.5, Procedure I MIL STD 810G Method 501.6 (high temp +55°C) MIL STD 810G Method 502.6 (low temp -20°C) MIL STD 810G Method 507.6 (humidity 95%) MIL STD 810G Method 512.6 (immersion – 1 metre for 30 mins) |
| Shock and Impact | MIL STD 810G Method 514.7 (vibration – 1 hour each axis) MIL STD 810G Method 516.7 (shock 20g – 11ms half sine shock pulse, 40g 11ms in each axis) MIL STD 810G Method 516.7 (26 drops – transit drop 1.22 m) |
| Standards | Designed for EN 15317 |
| Environmental | RoHS, WEEE compliant |
| Warranty | 3 years on gauge and 6 months on probe |
- Cygnus 4+ Gauge
- Operating Manual
- Neck Strap
- Accessory Pouch, containing: 3 x AA Batteries; Blue Couplant Gel.
CYGNUS PROBES AND CABLES
Stainless Steel INOX Single Crystal Probes
The INOX probes have an updated ergonomic design and an easier to read frequency, identification and serial numbering. All frequencies of INOX probes have a black face and a colour coding ring to identify probe frequency.
Used in Multiple-Echo mode, these probes require no zeroing, have a high linear accuracy, are ideal for general thickness gauging and on pipes and have replaceable wear membrane for long life.
Stainless Steel INOX Twin Crystal Probes
Used in Echo-Echo and Single-Echo modes and focussed ultrasound beam with improved measurability on extreme back wall corrosion and pitting.
Probe Options
For optimum performance of the ultrasonic thickness gauge it is essential to utilise the appropriate probe for the specific material being tested. Here below are the probe options available.
| Single crystal probes: | 6 mm – 5 MHz (S5A) |
| 13 mm – 2.25 MHz (S2C (standard)), 3.5 MHz (S3C) or 5 MHz (S5C) | |
| 19 mm – 2.25 MHz (S2D) | |
| Twin crystal probes: | 5 mm – 7.5 MHz (T7A) |
| 8 mm – 5 MHz (T5B (standard)) | |
| 12 mm – 2 MHz (T2C (for attenuative materials such as cast metals, plastics and composites)) |
Cygnus Cables
Using standard industry connectors the probe lead uses a custom made over moulded cable that offers superior flexibility and resistance to oils and ultraviolet light. The cable will not stiffen after exposure to ultraviolet light.
6 reviews for Cygnus 4+ General Purpose
Flexible Handling
Along with the wrist and neck straps supplied in the kit there is also an optional belt clip, offering a range of flexible handling solutions for all types of applications.
We tested the New Cygnus UTM Instruments 2+ and 4+ using single & twin crystals probes.
Tests carried out in our premises and in real working conditions on a 15 years old cargo ship of 10.000 M.Tns.
In our premises we used the following samples, which have been obtained from ships; cropped plates and we use them in our premises for practice purposes.
1.New Coated Steel Plate 10.0 mm.
2.Extremely corroded on both sides Steel Plate, with thickness variation from 4.6 mm to 9.7 mm. Taken gaugings were verified with Outside Callipers.
3.Gray Cast 12.0 mm.
4.Aluminium 6.0 mm.
On the Cargo Ship we focused our tests on the non-coated Inner Bottom Plating of 16.0 mm original thickness.
We got about 100 gaugings which varied between 15.8 mm to 14.4 mm.
All readings, in both tests, were obtained instantly and it should be mention that the new measuring experience with MSI System gave to us a real confidence that the reading we see is the real remaining thickness on that spot.
Apart the user-friendly, high analysis coloured LCD screen and the very easy menu we consider quite important to mention that once we took the instrument in our hands we got an immediate impression of the unit being very rugged. Its tight case together with the strong cable and its twin lemo locking connector allow the operator to focus only to the gauging without worrying at all about the machine.
We approached Cygnus in late 2016 as a result of discovering areas of corrosion in our vessel Lord Nelson in an area specific to the design allowing for disabled access – the watertraps. These areas act to prevent the ingress of water into the vessel given that we can’t have door sills due to the flat sill required for wheelchairs.
Given the age of Lord Nelson, now over 30 years old, it was agreed that to have our own NDT test instrument, while not negating the need for formal Lloyds’ testing, would allow us to keep a check on corrosion and give us a level of confidence as and when areas were discovered. Cygnus kindly offered advice and supplied a Cygnus 4+ Ultrasonic Multi-Mode Thickness Gauge kit including both single and dual crystal probes.
Despite our own relative inexperience in such testing, the results we obtained were confirmed by professional spot testing and proved easy to achieve, the device being simple to calibrate and use, with both probe types.
I have used the gauges extensively, often in awkward places where the gauges often take a beating, as well as occasionally getting wet; but the Cygnus gauges have proven to be robust and reliable.
The 4+ meter is very light and easy to carry and has the option to use single crystal or twin crystal transducers, which allows me the ability to measure through thick coatings in deep coat mode, as well heavily corroded metals. When taking measurements with this meter I have found it to be accurate with repeatable results.
The 4+ gauges we use at JDH allow us to see a clear, simple A-Scan as measurements are taken – which in turn allows us to verify measurements. I can also log my measurement [together with the A-scans] and easily transfer them into reports for clients, which is very beneficial.
I am pleased to say that I have always received excellent service from Cygnus Instruments and I will continue to use their products, as I know I have a reliable, robust tool that I can genuinely trust.
We have purchase 4 pcs. of Cygnus 4+ UTG Kit and 1 pcs. of Cygnus 6+ UTG Kit.
With these instruments we have check more that 3.000.000 points on coated steel pipe. Results were among expected. We are more than satisfied with equipment.
Having owned and operated the Cygnus models two and three I recently upgraded to the Cygnus 4+. Cygnus has always been a brand to associate with reliable and accurate UTM readings, and working for a number of high-profile clients and MCA classification societies this accuracy is mandatory. The Cygnus 4+ is not only small and light weight, it is also wrist mounted to keep your hands free. The added functions are endless, and you can add comments in for single readings and also add additional readings (outside of the pre-determined grid) in as you are conducting the survey. This is very useful if defect areas are identified as they can be clearly documented on the spot, rather than having to return after the record is completed. The back-office software is user friendly and has plenty of fields for extra information that can be added apparent to the vessel. After having a demonstration of the Cygnus 4+ at the 2019 Seawork show I ordered the unit the following day. The staff are very helpful and knowledgeable, and the unit arrived promptly. The Cygnus 4+ has helped me become more time efficient and produces a very informative report that is well accepted within the industry.
I have already used CYGNUS equipment, they are practical equipment and with excellent response in thickness measurements. Very good brand.
